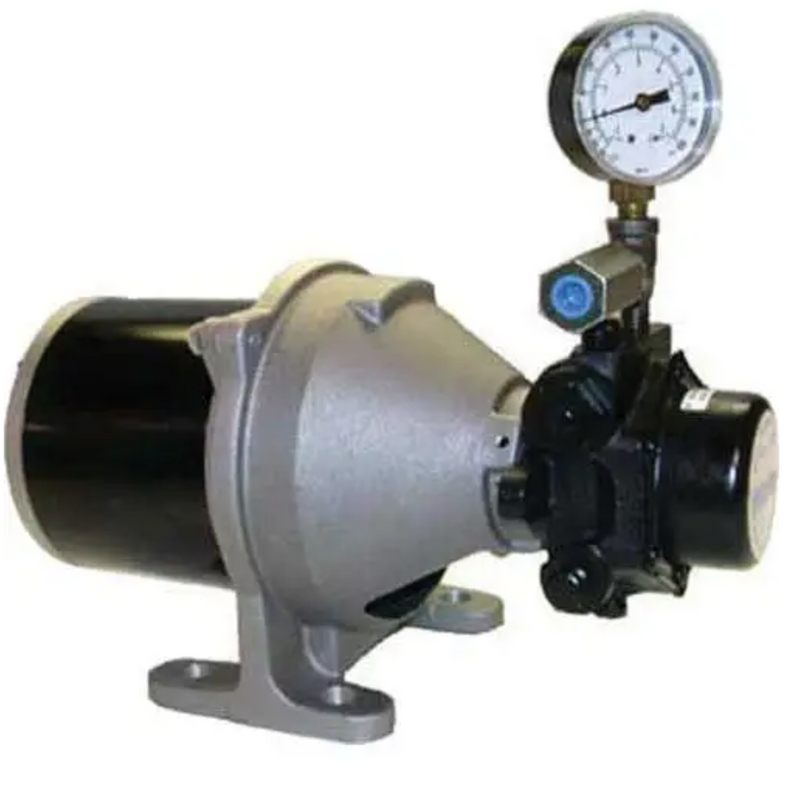

SPM-15-1 Pump & Motor Assembly - Webster

The Webster SPM-15-1, Pump & Motor Assembly consist of a fuel pump direct coupled to a motor. An integral check valve and combination vacuum/pressure gauge. They are designed to supply fuel oil from a central storage tank to remote heating units or auxiliary tanks.

• 60 cycle, 1750 RPM, continuous duty, split phase
• 1/4" NPTF top and bottom returns
• Double lip seal
• Rotary self-cleaning type filter
• Pressure regulating assembly in pump maintains set pressure
• Check valve maintains oil in feeder lines for instant starts
• 2-1/2" diameter, calibrated from 30" vacuum to 100 psi gauge
• 15" Hg vacuum inlet
• NEMA 1 enclosure
• 200 feet head
