Oil Pump - Two Stage - Webster

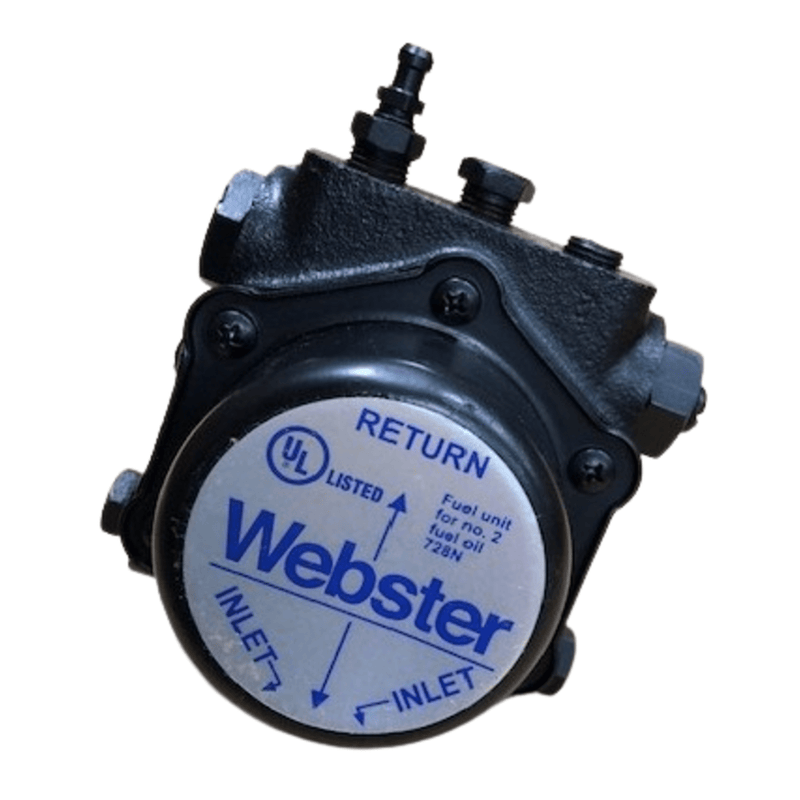

The Webster 22R623D-5C14 is a two-stage fuel oil pump from the R Series, designed for high-efficiency fuel transfer and pressure regulation in heating systems.

🔧 Technical Specifications

• Model: 22R623D-5C14
• Series: R Series
• Pump Type: Two-stage
• Speed: 3450 RPM
• Rotation / Nozzle Location: Counterclockwise (CCW) from shaft end / Right side
• Capacity: 65 GPH (Gallons Per Hour)
• Pressure Range: Factory set at 100 PSI
• Connection Size: 1/4" NPTF
• Configuration: D-style body

⚙️ Key Features

• Two-Stage Operation: Enhances priming and lift capabilities, ideal for systems with long pipe runs or elevation differences.
• Rotary Filter: Built-in self-cleaning rotary filter reduces maintenance needs.
• Double Lip Seals: Provide superior leak protection and lower friction than face-type seals.
• Durable Construction: Designed for long service life in demanding heating environments.
