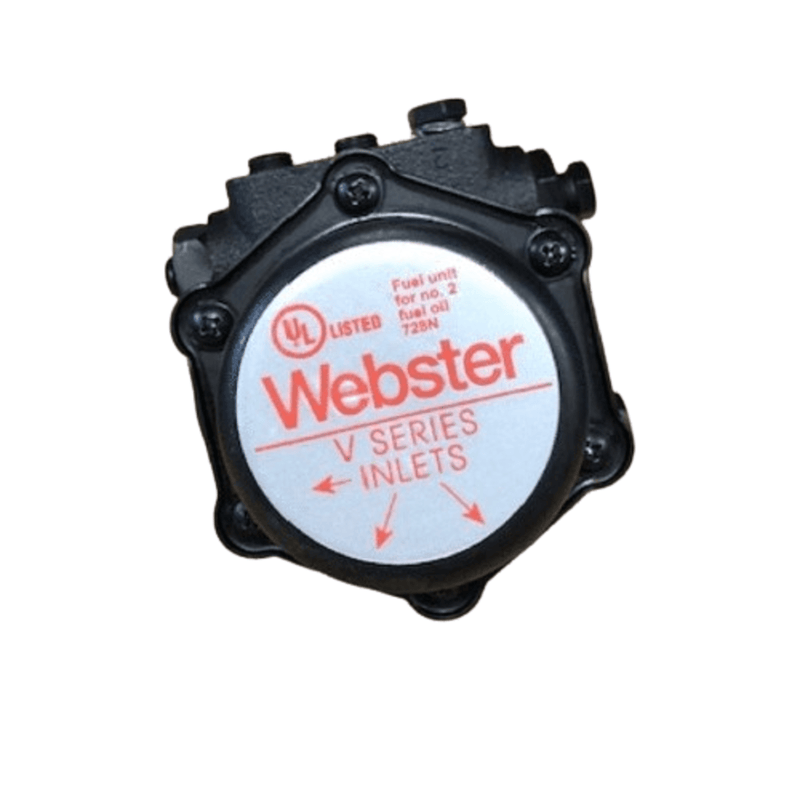

Oil Pump V086C-4DO20 Single Stage - Webster
Original price
$1,693.54
-
Original price
$1,693.54
Original price
$1,693.54
$1,693.54
$1,693.54
-
$1,693.54
Current price
$1,693.54
SKU WTR-V086C-4DO20
Availability:
In stock
The Webster V086C-4DO20 is a single-stage fuel oil pump from the V Series, designed for high-capacity fuel delivery in heating systems. Here's a detailed breakdown of its specifications:
🔧 Technical Specifications
- Model: V086C-4DO20
- Series: V Series
- Pump Type: Single-stage
- Speed: 1725 RPM
- Rotation / Nozzle Location: Counterclockwise (CCW) from shaft end / Left side
- Capacity: 135 GPH (Gallons Per Hour)
- Rated Pressure: 80 PSI
- Maximum Operating Pressure: 190 PSI
- Fuel Compatibility: #2 fuel oil and similar heating fuels
- Design: Internal regulation with hardened gears
⚙️ Features
- High Flow Rate: Ideal for large residential or commercial oil burners.
- Internal Pressure Regulation: Simplifies system design and improves reliability.
- Durable Construction: Built for long service life with minimal maintenance.
This pump is well-suited for systems requiring high-volume, single-stage fuel delivery with consistent pressure control.
