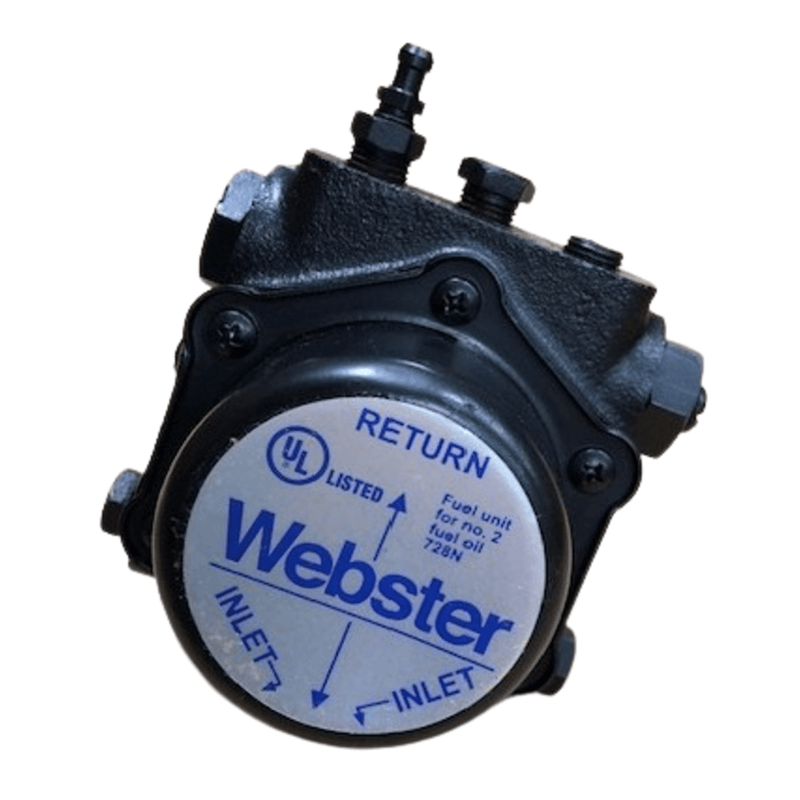

Oil Pump Two Stage - Webster

The Webster 22R623D-5AA14 is a two-stage fuel oil pump from the R Series, designed for high-performance fuel transfer in industrial and commercial heating systems.

🔧 Technical Specifications

• Model: 22R623D-5AA14
• Series: R Series
• Pump Type: Two-stage
• Speed: 3450 RPM
• Rotation / Nozzle Location: Clockwise (CW) from shaft end / Right side (D-style configuration)
• Capacity: 65 GPH (Gallons Per Hour) at 100 PSI
• Maximum Pressure: Up to 300 PSI
• Connection Size: 1/4" NPTF threaded
• Motor: 2-phase, 60 Hz
• Shaft: 2" shaft
• Weight: Approx. 9 lbs

⚙️ Key Features

• Two-Stage Operation: Provides enhanced priming and lift, ideal for systems with long pipe runs or elevation differences.
• Rotary Filter: Built-in self-cleaning rotary filter reduces maintenance needs
• Double Lip Seals: Offer superior leak protection and lower friction than face-type seals.
• Compact and Durable: Designed for tight installations and long service life in demanding environments
